120X 130X 180X 200X 300X adjustable amplification C-Mount Lens adapter for Industry Video Microscope HDMI VGA USB Camera. Continuous Zoom C-MOUNT Lens for High working distance and large observation area, used for Industry Video Microscope Camera.

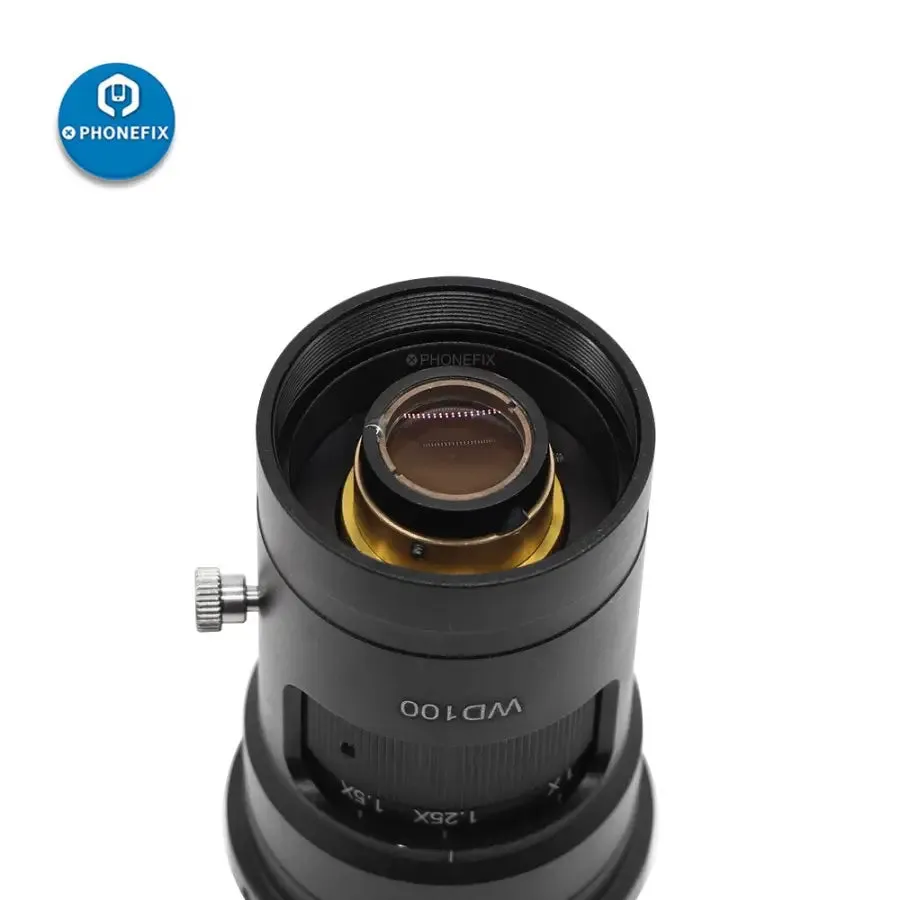

Zoom C-mount Glass Lens Adapter for Industry Microscope Camera

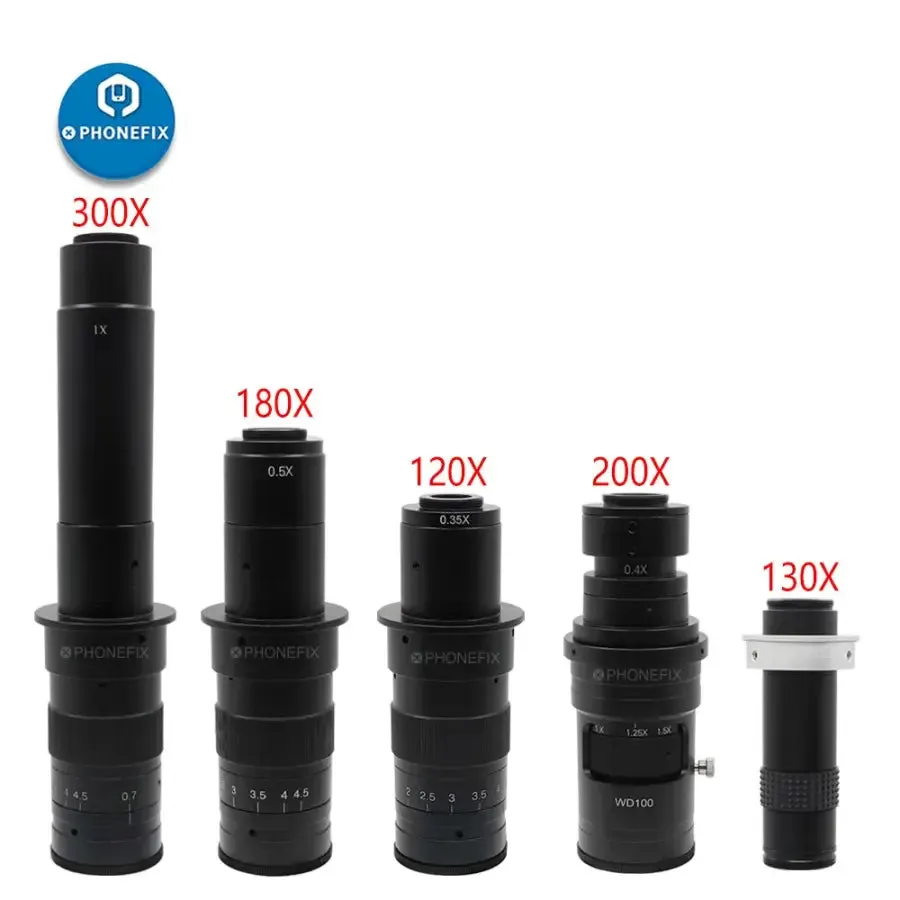

This adapter fits XDS-0745 120X 180X 300X Zoom C-mount Lens
120X(Use magnification factor of 120X, Increase working view)

180X(Use magnification factor of 180X, Increase working view)

300X(Use magnification factor of 300X, Reduce working view, Increase magnification factor)

130X Continuous Zoom C-mount Lens, Work distance 30mm-570mm.High working distance and large observation area, for phone PCB SMD Soldering

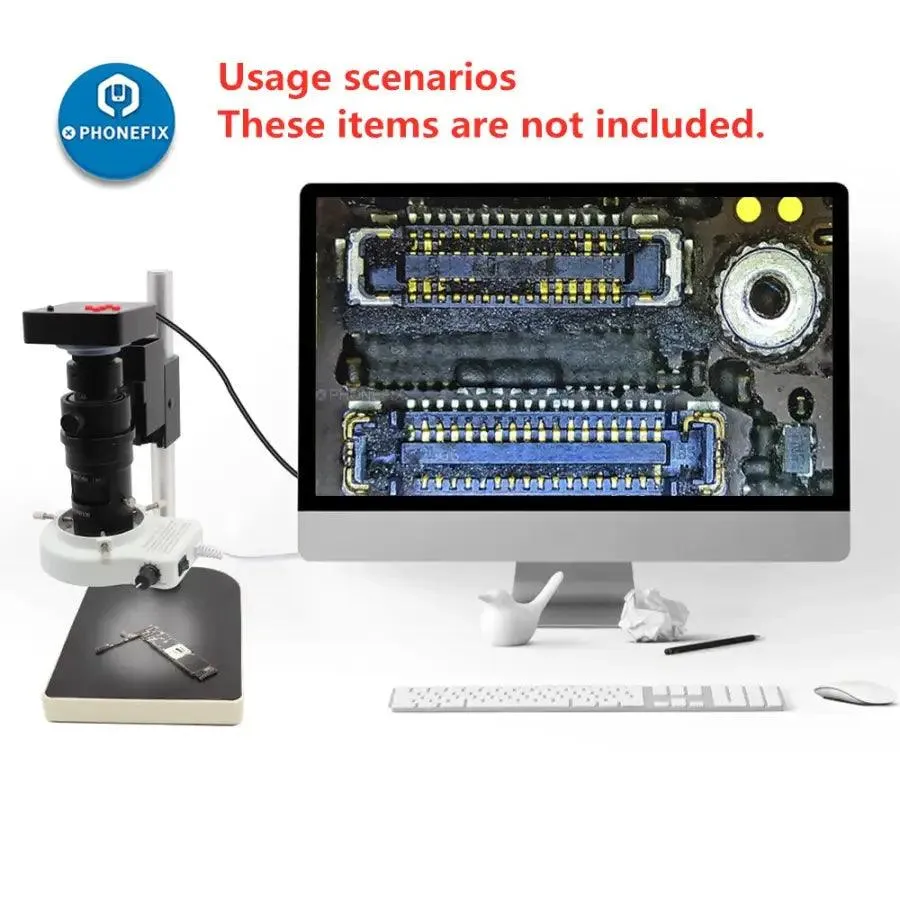

200X FHD 0.7X-5X Zoom C-mount Lens, XDS-0745 180X upgraded version, better definition, Increased working distance to 100mm-175mm, very suitable for phone PCB SMD Soldering

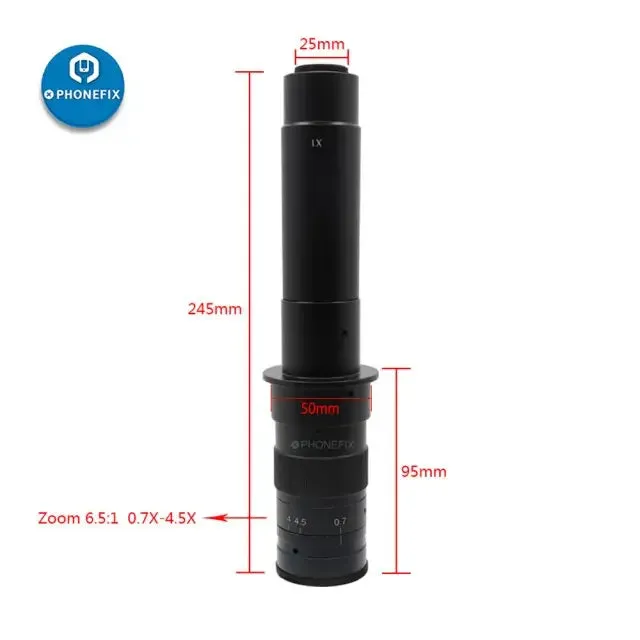

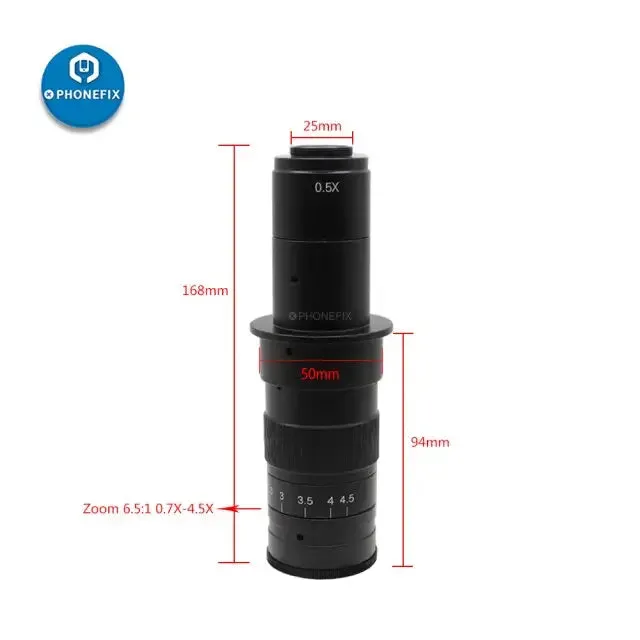

120x 180x 300x Feature:
Working distance: 95mm
zoom c-mount Lens
0.5X/1X/0.35X C-mount adapter
zoom ratios: 6.5:1
Objective Magnification Power by 0.7 - 4.5X(about 10 - 120X 180X or 300X on the display)
Size: 168mm(L) * 50mm(DIA)

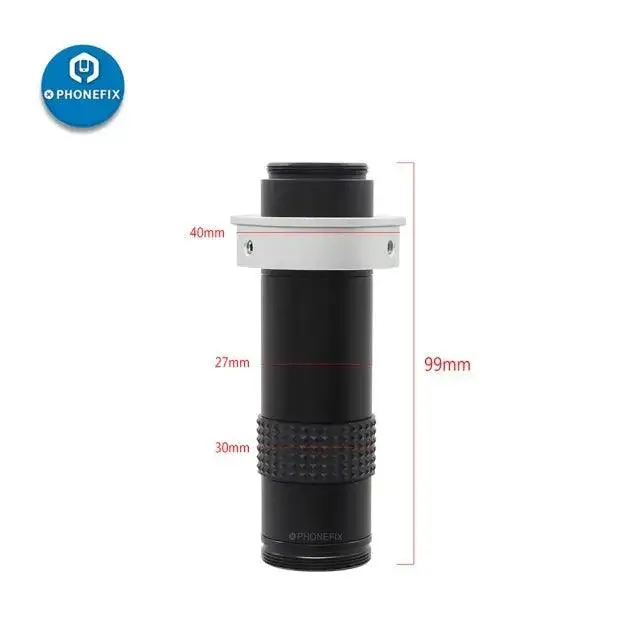

130x Feature:
Zoom ratio: 15: 1
Magnification Power by :1X~120X
Material vision: 2.4mm-36mm
Working distance: 55mm-570mm
Lens length: 110mm
Interface size: ¢ 28mm

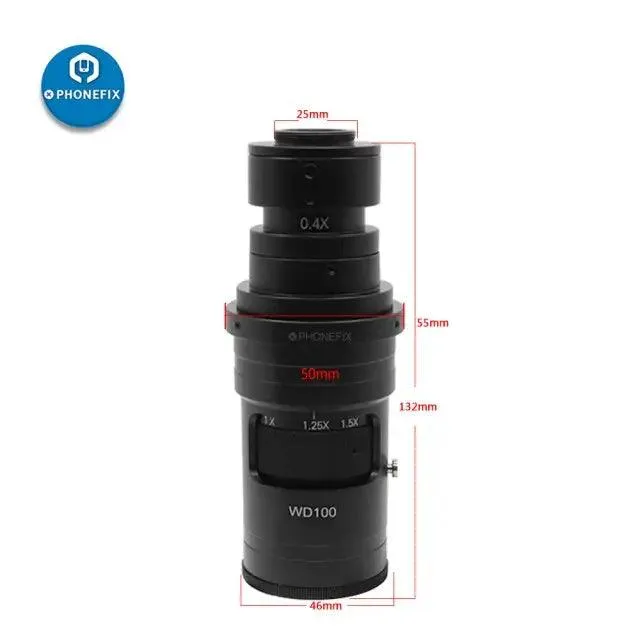

200x Feature:
Working distance:100mm -175mm
Connector: C mount
Zoom: continuously variable zoom
Objective Magnification:0.7X - 5X(about 10 - 200X on the display)
Eyepiece lens adapter:0.4X
Fixed position:50mm
Locking:0.7X - 5X Locking
Auxiliary Objective Lens:0.35X, 0.5X, 2X (optional)
Size:132mm(L) * 55mm(DIA).
